SPOTLIGHT
Model
COLLIMATOR MINI
SPECIFICATION
ITEM NO.
:
H1971A-AN
WATT, LUMINOUS
:
4.5 ≈ 450lm
KELVIN
:
3000K
BEAM ANGLE
:
30°
CRI
:
80
INPUT
:
200-240V~ 50Hz
POWER FACTOR
:
0.9
SAFETY TYPE
:
IP65
COLOR
:
ANTHRACITE
– Body and bracket in die-cast aluminium
– Powder coated with pretreatment for outdoor use
– Clear glass
– Silicon rubber gasket
– LED driver certified by Intertek

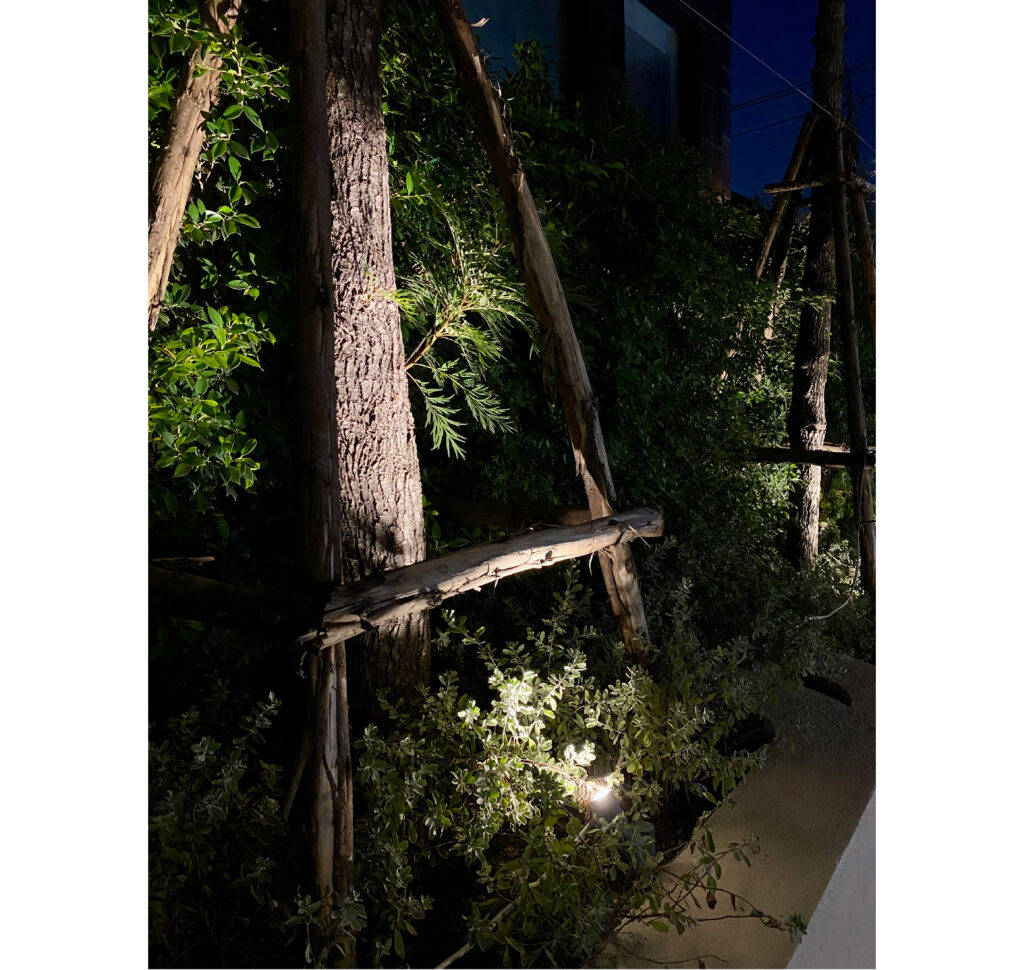

![7-COLLIMATOR-MINI-Demo](https://www.southeastthailand.co.th/wp-content/uploads/2022/12/7-COLLIMATOR-MINI-Demo-1024x970.jpg)

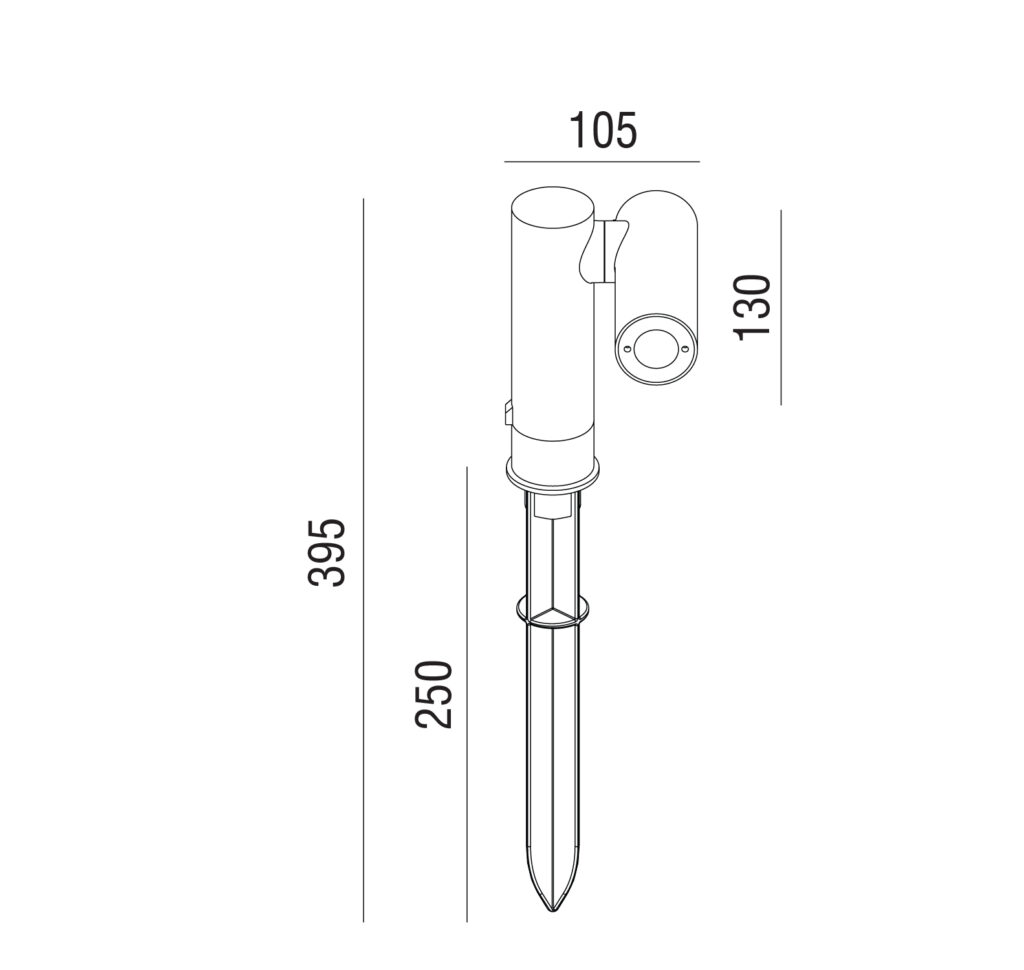

DIMENSION (Unit of mm.)
![7-COLLIMATOR-MINI-Draft](https://www.southeastthailand.co.th/wp-content/uploads/2022/12/7-COLLIMATOR-MINI-Draft-1024x970.jpg)

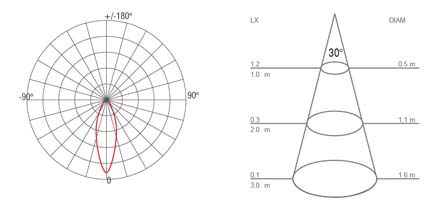

PHOTOMETRIC DATA
![7-COLLIMATOR-MINI-Size](https://www.southeastthailand.co.th/wp-content/uploads/2022/12/7-COLLIMATOR-MINI-Size-950x1024.jpg)
